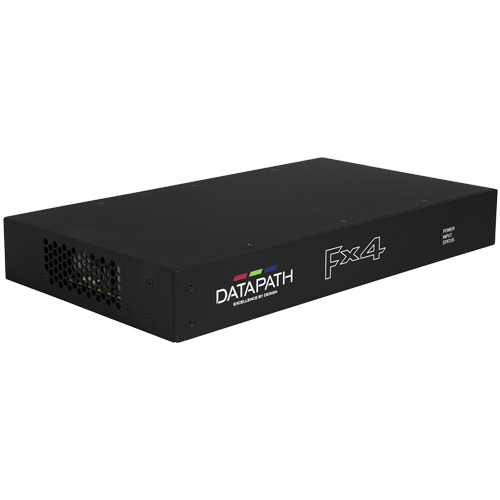

Datapath FX4
The Datapath x4 is a stand alone display wall controller that accepts a standard single or dual-link DVI input and can flexibly display this across four output monitors.
Each output can be driven as DVI or analog RGB, and can represent an arbitary crop region of the original input image. The output resolution and frame rate does not need to be related to that of the input, as the Datapath x4 display controller will optionally upscale and frame rate convert each cropped region independently.
Datapath dL8
The Datapath dL8 is an eight output distribution amplifier for ultra-high resolution Dual Link DVI signals providing a programmable, flexible and low cost solution for any video wall display. When used in conjunction with up to 8 Datapath x4 stand alone display wall controllers, the Datapath dL8 supports up to 32 screens video walls.
One dual-link DVI output, supporting graphics sources with pixel clocks up to 330MHz and resolutions beyond Quad-HD (3480 x 2160), can be delivered to eight outputs on separate DVI-D (dual-link) connectors. This Distribution Amplifier supports up to 20m even at full dual-link resolutions due to additional active equalisation and re-clocking hardware, allowing convenient location for flexible display designs.
